2 Treffer
Kompaktansicht
Filter

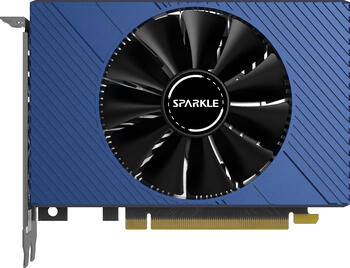

Sparkle Arc A380 Elf, 6GB GDDR6 Grafikkarte, HDMI, 3x DP
Sparkle Arc A380 Elf, 6GB GDDR6 Grafikkarte, HDMI, 3x DP
Artikelnr. A0660001   Herstellernr. SA380E-6G
153,85 €

  • GPU: Intel Arc A380 Graphics
  • Speicher: 6GB GDDR6, 96bit, 15.5Gbps, 1937MHz, 186GB/s
  • Takt Basis: unbekannt
  • Takt Boost: 2000MHz
  • Übertaktung: -
  • Kühlung: 1x Axial-Lüfter (95mm)
  • TDP/TGP: 75W (Intel)
  • Stromanschlüsse: -
  • Anschlüsse: 1x HDMI 2.0b, 3x DisplayPort 2.0 UHBR10
  • Anbindung: PCIe 4.0 x16 (x8)
  • Mini-ITX-Format (=185mm)
  • Gesamthöhe: Dual Slot
  • Bauform: PCIe-Karte (full height)
  • Slotblende: full height
  • Chip-Daten:
  • Chip-Architektur: Xe-HPG Alchemist / Gen 12.7 (ab 2022/Q1)
  • Chip-Bezeichnung: ACM-G11 / DG2-128
  • Chip-Konfiguration: 8Xe / 128EU (1024SP / 64TMU / 32ROP), 8 RT Cores, 4MB L2-Cache
  • Chip-Fertigung: TSMC 6nm
  • Chip-Größe: 157mm², monolithisch, 7.2 Mrd. Transistoren
  • Chip-Funktionen: Raytracing
  • API-Unterstützung: DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.6
  • Transcoding-Engine: Info
  • Encoding: AV1 (8bit / 10bit), H.265 (4K YUV 4|2|0 / 4K YUV 4|4|4 / HEVC 10bit support), H.264 (YUV 4|2|0 / YUV 4|4|4), VP9
  • Decoding: AV1 (8bit / 10bit), H.265 (8bit 4|2|0 / 10bit 4|2|0 / 12bit 4|2|0 / 8bit 4|4|4 / 10bit 4|4|4 / 12bit 4|4|4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2
  • Multi-GPU-Anbindung: -
  • Vorstellung (Serie): 14.06.2022
  • Grafik: Intel Arc A380 Graphics - 6GB GDDR6 - Desktop
  • weitere Informationen
Ware nicht lagernd
Lieferzeiten von mehr als einer Woche sind zu erwarten.

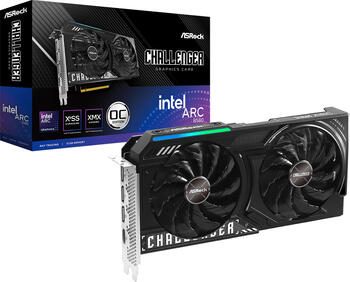

ASRock Arc B580 Challenger 12GB OC, B580 CL 12GO, 12GB
ASRock Arc B580 Challenger 12GB OC, B580 CL 12GO, 12GB
Artikelnr. A0660005   Herstellernr. 90-GA5LZZ-00UANF
323,55 €

  • Modell: Intel Arc B580 Graphics
  • Speicher: 12GB GDDR6, 192bit, 19.2Gbps, 2400MHz, 461GB/s
  • Takt Basis: unbekannt
  • Takt Boost: 2740MHz
  • Übertaktung: +70MHz Boost
  • Kühlung: 2x Axial-Lüfter (100mm) mit 0dB-Zero-Fan-Modus
  • TDP/TGP: 190W (Intel)
  • AI-Rechenleistung: +233 TOPS
  • Stromanschlüsse: 1x 8-Pin PCIe
  • Anschlüsse: 1x HDMI 2.1, 1x DisplayPort 2.1 UHBR13.5, 2x DisplayPort 2.1 UHBR10
  • Anbindung: PCIe 4.0 x16 (x8)
  • AI-Beschleunigung, LED-Beleuchtung (RGB), Backplate
  • Gesamthöhe: Dual Slot (2 Slots)
  • Abmessungen: 249x132x41mm (LxBxH), Gewicht| 720g
  • Bauform: PCIe-Karte (full height)
  • Slotblende: full height
  • Chip-Daten:
  • Chip-Architektur: Xe2-HPG Battlemage / Gen 12.7 (ab 2024/Q4)
  • Chip-Bezeichnung: BGM-G21
  • Chip-Konfiguration: 20Xe / 320EU (2560SP / 160TMU / 80ROP), 20 RT Cores, 12MB L2-Cache
  • Chip-Fertigung: TSMC 5nm
  • Chip-Größe: 272mm², monolithisch, 19.6 Mrd. Transistoren
  • Chip-Funktionen: Raytracing
  • API-Unterstützung: DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.6
  • Transcoding-Engine: Info
  • Encoding: AV1 (8bit / 10bit), H.265 (4K YUV 4|2|0 / 4K YUV 4|4|4 / HEVC 10bit support), H.264 (YUV 4|2|0 / YUV 4|4|4), VP9
  • Decoding: AV1 (8bit / 10bit), H.265 (8bit 4|2|0 / 10bit 4|2|0 / 12bit 4|2|0 / 8bit 4|4|4 / 10bit 4|4|4 / 12bit 4|4|4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2
  • Multi-GPU-Anbindung: -
  • Vorstellung (Serie): 03.12.2024, Marktstart| 13.12.2024, UVP| 249 USD (Intel)
  • Grafik: Intel Arc B580 Graphics - 12GB GDDR6 - Desktop
  • weitere Informationen
Ware nicht lagernd
Lieferzeiten von mehr als einer Woche sind zu erwarten.
Alle Preise inkl. MwSt.
