- Extern: 2x seriell 9-Pin, 2x seriell RJ-45, 1x parallel 25-Pin, 1x RJ-11
- Schnittstelle: proprietär
- kompatibel zu X50V4/X50V5
bei Bestellung Versand heute, den 25.04

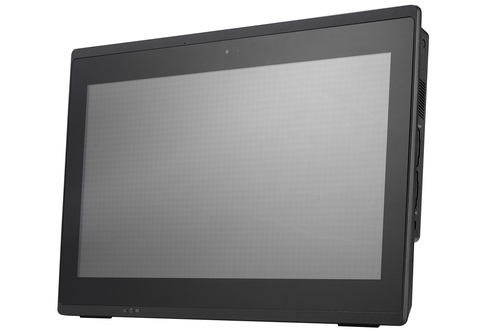

- Typ: All-in-One (15.6, 1920x1080, Multi-Touch, Webcam, Mikrofon)
- Chipsatz: System-on-Chip (SoC)
- CPU: Intel Celeron 5205U, 2C/2T, 1.90GHz, 2MB+0.5MB Cache, 15W TDP, 12.5W cTDP, Codename Comet Lake-U (Comet Lake, Intel 14nm++)
- RAM: 2x DDR4 SO-DIMM, dual PC4-19200S/DDR4-2400, max. 32GB (UDIMM)
- Festplatte: 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242)
- Schächte intern: 1x 2.5
- Grafik: Intel UHD Graphics (iGPU), 23EU/184SP, 0.30-0.90GHz, Architektur Gen 9.5 (Comet Lake GT2)
- Anschlüsse hinten: 1x VGA, 1x HDMI 1.4, 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x RJ-45 1Gb LAN (Intel I219-V), 2x 3.5mm Klinke (Realtek ALC269), 2x seriell, 1x Hohlbuchse (Netzanschluss)
- Nachrüstbare Anschlüsse hinten: 2x seriell
- Anschlüsse vorne/Seite: 1x SD Card
- Erweiterungsslots: 1x M.2/E-Key (PCIe, 2230)
- Audio: 2.0 (Realtek ALC269)
- Cardreader: SD Card
- Netzteil: extern, 1x Hohlstecker (65W/19V/3.42A)
- VESA-Halterung: 100x100 (optional)
- Volumen: 5.4l
- CPU-Kühler: inkludiert
- lüfterlos, Lautsprecher (2x 2W), IP54 zertifiziert, geeignet für Dauerbetrieb
weitere Informationen
- Typ: All-in-One (15.6, 1920x1080, Multi-Touch, Webcam, Mikrofon)
- Chipsatz: System-on-Chip (SoC)
- CPU: Intel Core i3-10110U, 2C/4T, 2.10-4.10GHz, 4MB+0.5MB Cache, 15W TDP, 10-25W cTDP, Codename Comet Lake-U (Comet Lake, Intel 14nm++)
- RAM: 2x DDR4 SO-DIMM, dual PC4-21300S/DDR4-2666, max. 32GB (UDIMM)
- Festplatte: 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242)
- Schächte intern: 1x 2.5
- Grafik: Intel UHD Graphics (iGPU), 23EU/184SP, 0.30-1.00GHz, Architektur Gen 9.5 (Comet Lake GT2)
- Anschlüsse hinten: 1x VGA, 1x HDMI 1.4, 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x RJ-45 1Gb LAN (Intel I219-V), 2x 3.5mm Klinke (Realtek ALC269), 2x seriell, 1x Hohlbuchse (Netzanschluss)
- Nachrüstbare Anschlüsse hinten: 2x seriell
- Anschlüsse vorne/Seite: 1x SD Card
- Erweiterungsslots: 1x M.2/E-Key (PCIe, 2230)
- Audio: 2.0 (Realtek ALC269)
- Cardreader: SD Card
- Netzteil: extern, 1x Hohlstecker (65W/19V/3.42A)
- VESA-Halterung: 100x100 (optional)
- Volumen: 5.4l
- CPU-Kühler: inkludiert
- lüfterlos, Lautsprecher (2x 2W), IP54 zertifiziert, geeignet für Dauerbetrieb
weitere Informationen
VESA-Halterung: 75x75, 100x100
- Typ: Mini-PC
- Chipsatz: System-on-Chip (SoC)
- CPU: Intel Celeron 5205U, 2C/2T, 1.90GHz, 2MB+0.5MB Cache, 15W TDP, 12.5W cTDP, Codename Comet Lake-U (Comet Lake, Intel 14nm++)
- RAM: 2x DDR4 SO-DIMM, dual PC4-19200S/DDR4-2400, max. 64GB (UDIMM)
- Festplatte: 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242)
- Schächte intern: 1x 2.5
- Grafik: Intel UHD Graphics (iGPU), 23EU/184SP, 0.30-0.90GHz, Architektur Gen 9.5 (Comet Lake GT2)
- Anschlüsse hinten: 1x VGA, 1x HDMI 2.0a, 1x DisplayPort 1.2, 2x USB-A 3.0 (5Gb/s), 1x RJ-45 2.5Gb LAN (Intel I225-V), 1x RJ-45 1Gb LAN (Intel I219-V), 1x seriell, 1x 4-Pin-Connector (Netzanschluss), 1x Hohlbuchse (Netzanschluss)
- Anschlüsse vorne/Seite: 2x USB-A 3.1 (10Gb/s), 4x USB-A 2.0 (480Mb/s), 2x 3.5mm Klinke (Realtek ALC897), 1x SD Card
- Erweiterungsslots: 1x M.2/E-Key (PCIe, 2230)
- Audio: 5.1 (Realtek ALC897)
- Cardreader: SD Card
- Netzteil: extern, 1x Hohlstecker (65W/19V/3.42A)
- VESA-Halterung: 75x75/100x100 (inkludiert)
- Gewicht: 1.50kg
- Volumen: 1.3l
- CPU-Kühler: inkludiert
- lüfterlos, Sicherheitsschloss (Kensington), 3x Display Support, geeignet für Dauerbetrieb, garantierter Temperaturbereich (0-40C)
weitere Informationen
Typ: Adapter
- Typ: Cube
- Chipsatz: Intel H570
- Sockel: Intel 1200 (ohne TDP-Einschränkung)
- CPU: nein
- CPU-Kompatibilität: CPU-Kompatibilität| Core i-11000, Core i-10000, Pentium Gold G6000, Celeron G5000, ohne TDP-Einschränkung (Hersteller-Liste)
- RAM: 4x DDR4, dual PC4-25600U/DDR4-3200, max. 128GB (UDIMM)
- Festplatte: 4x SATA 6Gb/s, 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242)
- Schächte intern: 4x 3.5
- Grafik: CPU (iGPU)
- Anschlüsse hinten: 1x HDMI 2.0b, 2x DisplayPort 1.4, 4x USB-A 3.1 (10Gb/s), 4x USB-A 2.0 (480Mb/s), 2x RJ-45 1Gb LAN (Intel I219-LM/Intel I210-AT), 3x 3.5mm Klinke (Realtek ALC897), 1x AC-In (Netzanschluss)
- Nachrüstbare Anschlüsse hinten: 1x seriell (via Shuttle H-RS232)
- Anschlüsse vorne/Seite: 1x USB-C 3.0 (5Gb/s), 3x USB-A 3.0 (5Gb/s), 2x 3.5mm Klinke (Realtek ALC897)
- Erweiterungsslots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x4, 1x M.2/E-Key (PCIe, 2230)
- Audio: 5.1 (Realtek ALC897)
- Netzteil: intern, 1x AC-In (500W), 80 PLUS Gold
- Gewicht: 3.50kg
- Volumen: 13.6l
- CPU-Kühler: inkludiert
- Sicherheitsschloss (Kensington), 3x Display Support
weitere Informationen
- Typ: Mini-PC
- Chipsatz: System-on-Chip (SoC)
- CPU: Intel Pentium Silver N6005, 4C/4T, 2.00-3.30GHz, 4MB+2MB Cache, 10W TDP, Codename Jasper Lake (Tremont, Intel 10nm+ + Intel 14nm)
- RAM: 2x DDR4 SO-DIMM, dual PC4-23466S/DDR4-2933, max. 16GB (UDIMM)
- Festplatte: 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 3.0 x2/SATA, 2280)
- Schächte intern: 1x 2.5
- Grafik: Intel UHD Graphics (iGPU), 32EU/256SP, 0.45-0.90GHz, Architektur Gen 11 Zoll (Jasper Lake GT1)
- Anschlüsse hinten: 1x VGA, 1x HDMI 2.0b, 1x DisplayPort 1.4a, 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x RJ-45 2.5Gb LAN (Intel I225-V), 2x seriell, 1x 4-Pin-Connector (Netzanschluss), 1x Hohlbuchse (Netzanschluss)
- Anschlüsse vorne/Seite: 2x USB-A 3.1 (10Gb/s), 2x 3.5mm Klinke (Realtek ALC897), 1x SD Card
- Erweiterungsslots: 1x M.2/E-Key (PCIe, 2230)
- Audio: 2.0 (Realtek ALC897)
- Cardreader: SD Card
- Netzteil: extern, 1x Hohlstecker (40W)
- VESA-Halterung: 75x75/100x100 (inkludiert)
- Gewicht: 800g
- Volumen: 1.3l
- CPU-Kühler: inkludiert
- lüfterlos, Sicherheitsschloss (Kensington), 3x Display Support, geeignet für Dauerbetrieb
weitere Informationen
- Typ: Cube
- Chipsatz: Intel H570
- Sockel: Intel 1200 (ohne TDP-Einschränkung)
- CPU: nein
- CPU-Kompatibilität: CPU-Kompatibilität| Core i-11000, Core i-10000, Pentium Gold G6000, Celeron G5000, ohne TDP-Einschränkung (Hersteller-Liste)
- RAM: 4x DDR4, dual PC4-25600U/DDR4-3200, max. 128GB (UDIMM)
- Festplatte: 4x SATA 6Gb/s, 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242)
- Schächte extern: 1x 5.25, 1x 3.5
- Schächte intern: 1x 3.5
- Grafik: CPU (iGPU)
- Anschlüsse hinten: 1x HDMI 2.0b, 2x DisplayPort 1.4, 4x USB-A 3.1 (10Gb/s), 4x USB-A 2.0 (480Mb/s), 2x RJ-45 1Gb LAN (Intel I219-LM/Intel I210-AT), 3x 3.5mm Klinke (Realtek ALC897), 1x AC-In (Netzanschluss)
- Nachrüstbare Anschlüsse hinten: 1x seriell (via Shuttle H-RS232)
- Anschlüsse vorne/Seite: 1x USB-C 3.0 (5Gb/s), 3x USB-A 3.0 (5Gb/s), 2x 3.5mm Klinke (Realtek ALC897)
- Erweiterungsslots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x4, 1x M.2/E-Key (PCIe, 2230)
- Audio: 5.1 (Realtek ALC897)
- Netzteil: intern, 1x AC-In (500W), 80 PLUS Gold
- Gewicht: 3.50kg
- Volumen: 13.6l
- CPU-Kühler: inkludiert
- Sicherheitsschloss (Kensington), 3x Display Support
weitere Informationen
- Typ: Mini-PC
- Chipsatz: Intel H610
- Sockel: Intel 1700
- CPU: nein (max. 65W TDP)
- CPU-Kompatibilität: Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000, TDP-Limit| 65W (Hersteller-Liste)
- RAM: 2x DDR4 SO-DIMM, dual PC4-25600S/DDR4-3200, max. 64GB (UDIMM)
- Festplatte: 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242)
- Schächte intern: 1x 2.5 (12.5mm)
- Grafik: CPU (iGPU)
- Anschlüsse hinten: 1x HDMI 2.0b, 1x DisplayPort 1.4, 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Gb/s), 1x RJ-45 1Gb LAN (Intel I219-V), 1x Hohlbuchse (Netzanschluss)
- Nachrüstbare Anschlüsse hinten: 1x VGA (via Shuttle PVG01)
- Anschlüsse vorne/Seite: 1x USB-C 3.0 (5Gb/s), 1x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Gb/s), 2x 3.5mm Klinke (Realtek ALC662)
- Erweiterungsslots: 1x M.2/E-Key (Intel CNVi/PCIe, 2230)
- Audio: 5.1 (Realtek ALC662)
- Netzteil: extern, 1x Hohlstecker (120W/19V)
- VESA-Halterung: 75x75/100x100 (optional, via Shuttle PV04)
- Gewicht: 1.30kg
- Volumen: 1.3l
- CPU-Kühler: inkludiert
- 2x Sicherheitsschloss (Kensington), 2x Display Support, geeignet für Dauerbetrieb, erweiterter Temperaturbereich (0-50C Umgebungstemperatur)
weitere Informationen

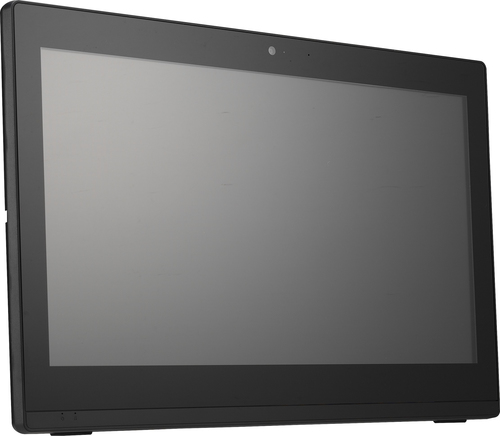

- Typ: All-in-One (19.5, 1600x900, Multi-Touch, Webcam, Mikrofon)
- Chipsatz: System-on-Chip (SoC)
- CPU: Intel Core i3-10110U, 2C/4T, 2.10-4.10GHz, 4MB+0.5MB Cache, 15W TDP, 10-25W cTDP, Codename Comet Lake-U (Comet Lake, Intel 14nm++)
- RAM: 2x DDR4 SO-DIMM, dual PC4-21300S/DDR4-2666, max. 64GB (UDIMM)
- Festplatte: 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 2.0 x4/SATA, 2280)
- Schächte intern: 1x 2.5
- Grafik: Intel UHD Graphics (iGPU), 23EU/184SP, 0.30-1.00GHz, Architektur Gen 9.5 (Comet Lake GT2)
- Anschlüsse hinten: 1x VGA, 1x HDMI 1.4b, 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x RJ-45 1Gb LAN (Intel I211-AT), 2x 3.5mm Klinke (Realtek ALC269), 2x seriell, 1x Hohlbuchse (Netzanschluss)
- Nachrüstbare Anschlüsse hinten: 1x parallel, 2x seriell
- Anschlüsse vorne/Seite: 2x USB-A 3.0 (5Gb/s), 1x SD Card
- Erweiterungsslots: 1x M.2/E-Key (PCIe, 2230, belegt mit WiFi+BT-Modul)
- Audio: 2.0 (Realtek ALC269)
- Cardreader: SD Card
- Netzteil: extern, 1x Hohlstecker (90W/19V)
- VESA-Halterung: 100x100 (optional)
- Gewicht: 4.29kg
- Volumen: 6.9l
- CPU-Kühler: inkludiert
- lüfterlos, Lautsprecher (2x 2W), IP54 zertifiziert (Vorderseite), geeignet für Dauerbetrieb
weitere Informationen
VESA-Halterung: 75x75, 100x100
- Typ: Blende
- Höheneinheiten: 2HE
- Für Shuttle XPC DX30, DL10J, DH02Ux, DS61, DS81(L), DH110(SE), DH170, DQ170, DH270, DH310(S), DH370, DS47, DS407(T), DS437(T), DS57Ux, DS67Ux, DS77Ux
Typ: Standfuß
Shuttle PVG01 - VGA-Port-Erweiterung für Slim-PCs. Anschluss 1: 15-pin Mini D-Sub, Anschluss 2: 2 x 10-pin, Kabellänge: 0,16 m. Produktfarbe: Schwarz, Edelstahl, Weiß
Shuttle DIR 01 DIN-Rail Mounting Kit for XPC slim series. Breite: 164 mm, Tiefe: 134 mm, Höhe: 7 mm
- Kompatibilität: XPC slim DS10U
- Kit bestehend aus M.2-Adapter, Antenne (2x) und 2x Antennenkabel
Shuttle Adapter board for a WLAN card for Edge PCs EN01J3/EN01J4. Hostschnittstelle: M.2, Ausgangsschnittstelle: M.2. Produktfarbe: Blau, Zweck: PC, Kühlung: Passiv. Menge pro Behälter: 1 Stück(e), Kompatibilität: Shuttle Edge EN01J3, EN01J4, EN01E, EN01B
- Typ: All-in-One (15.6, 1366x768, Multi-Touch, Webcam, Mikrofon)
- Chipsatz: System-on-Chip (SoC)
- CPU: Intel Core i3-10110U, 2C/4T, 2.10-4.10GHz, 4MB+0.5MB Cache, 15W TDP, 10-25W cTDP, Codename Comet Lake-U (Comet Lake, Intel 14nm++)
- RAM: 2x DDR4 SO-DIMM, dual PC4-21300S/DDR4-2666, max. 64GB (UDIMM)
- Festplatte: 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242)
- Schächte intern: 1x 2.5
- Grafik: Intel UHD Graphics (iGPU), 23EU/184SP, 0.30-1.00GHz, Architektur Gen 9.5 (Comet Lake GT2)
- Anschlüsse hinten: 1x VGA, 1x HDMI 1.4, 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x RJ-45 1Gb LAN (Intel I219-LM), 2x 3.5mm Klinke (Realtek ALC269), 1x Hohlbuchse (Netzanschluss)
- Nachrüstbare Anschlüsse hinten: 1x parallel, 2x seriell
- Anschlüsse vorne/Seite: 2x USB-A 3.0 (5Gb/s), 1x SD Card
- Erweiterungsslots: 1x M.2/E-Key (PCIe, 2230, belegt mit WiFi+BT-Modul)
- Audio: 2.0 (Realtek ALC269)
- Cardreader: SD Card
- Netzteil: extern, 1x Hohlstecker (65W/19V/3.42A)
- VESA-Halterung: 100x100 (optional)
- Volumen: 5.4l
- CPU-Kühler: inkludiert
- lüfterlos, Lautsprecher (2x 2W), IP54 zertifiziert (Vorderseite), geeignet für Dauerbetrieb, Sicherheitsschloss (Kensington)
weitere Informationen
- Typ: Mini-PC
- Chipsatz: System-on-Chip (SoC)
- CPU: Intel Core i3-8145U, 2C/4T, 2.10-3.90GHz, 4MB+0.5MB Cache, 15W TDP, 10-25W cTDP, Codename Whiskey Lake-U (Coffee Lake, Intel 14nm++)
- RAM: 2x DDR4 SO-DIMM, dual PC4-19200S/DDR4-2400, max. 32GB (UDIMM)
- Festplatte: 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242)
- Schächte intern: 1x 2.5 (15mm)
- Grafik: Intel UHD Graphics 620 (iGPU), 24EU/192SP, 0.30-1.00GHz, Architektur Gen 9.5 (Whiskey Lake GT2)
- Anschlüsse hinten: 1x HDMI 2.0a, 1x DisplayPort 1.2, 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 2.0 (480Mb/s), 1x RJ-45 1Gb LAN (Intel I211-AT), 1x 3.5mm Klinke (Realtek ALC662), 1x seriell, 1x Hohlbuchse (Netzanschluss)
- Anschlüsse vorne/Seite: 1x SD Card
- Erweiterungsslots: 1x M.2/E-Key (PCIe, 2230, belegt mit WiFi-Modul)
- Wireless: Wi-Fi 4 (WLAN 802.11b/g/n, 1x1, Realtek RTL8188EE)
- Audio: 5.1 (Realtek ALC662)
- Cardreader: SD Card
- Netzteil: extern, 1x Hohlstecker (65W/19V/3.42A)
- VESA-Halterung: 75x75/100x100 (inkludiert)
- Volumen: 0.8l
- CPU-Kühler: inkludiert
- Sicherheitsschloss (Kensington), 2x Display Support, geeignet für Dauerbetrieb
